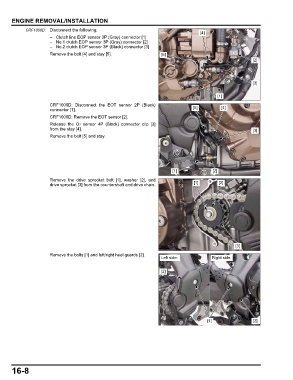

      ENGINE REMOVAL/INSTALLATION
            CRF1000D: Disconnect the following:
                                                                                     [4]
                      – Clutch line EOP sensor 3P (Gray) connector [1]
                      – No.1 clutch EOP sensor 3P (Gray) connector [2]
                      – No.2 clutch EOP sensor 3P (Black) connector [3]
                      Remove the bolt [4] and stay [5].             [5]
                                                                                                           [2]




                                                                                                           [3]

                                                                                            [1]

                      CRF1000D:  Disconnect the EOT  sensor 2P (Black)
                      connector [1].                                              [5]        [4]
                      CRF1000D: Remove the EOT sensor [2].
                      Release the  O2 sensor  4P (Black) connector clip [3]
                      from the stay [4].                                                                   [3]
                      Remove the bolt [5] and stay.







                                                                         [1]              [2]
                      Remove the drive sprocket bolt [1], washer [2], and
                      drive sprocket [3] from the countershaft and drive chain.   [1]       [2]














                                                                                                   [3]
                      Remove the bolts [1] and left/right heel guards [2].
                                                                    Left side:            Right side:

                                                                    [2]











                                                                                        [1]                [2]
