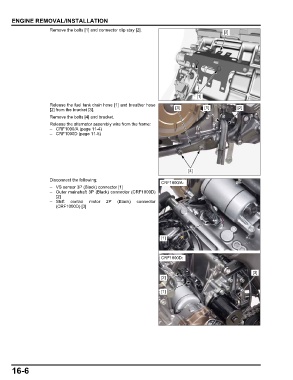

Page 402 - 2019 SHOP MANUAL CRF1000/A/D
P. 402

du
             dummyheadmmyhead

      ENGINE REMOVAL/INSTALLATION
                      Remove the bolts [1] and connector clip stay [2].                        [2]















                                                                                   [1]

                      Release the fuel tank drain hose [1] and breather hose
                      [2] from the bracket [3].                           [3]         [1]           [2]
                      Remove the bolts [4] and bracket.
                      Release the alternator assembly wire from the frame:
                      – CRF1000/A (page 11-4)
                      – CRF1000D (page 11-5)








                                                                                [4]
                      Disconnect the following:
                                                                    CRF1000/A:
                      – VS sensor 3P (Black) connector [1]
                      – Outer mainshaft 3P (Black) connector (CRF1000D)
                        [2]
                      – Shift  control  motor  2P  (Black)  connector
                        (CRF1000D) [3]






                                                                    [1]




                                                                    CRF1000D:

                                                                                                           [3]
                                                                    [2]

                                                                    [1]


















      16-6
