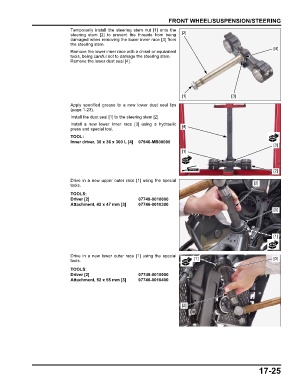

FRONT WHEEL/SUSPENSION/STEERING
Temporarily install the steering stem nut [1] onto the
steering stem [2] to prevent the threads from being [2]
damaged when removing the lower inner race [3] from
the steering stem.
[4]
Remove the lower inner race with a chisel or equivalent
tools, being careful not to damage the steering stem.
Remove the lower dust seal [4].

[1] [3]

Apply specified grease to a new lower dust seal lips
(page 1-23).
Install the dust seal [1] to the steering stem [2].
Install a new lower inner race [3] using a hydraulic [4]
press and special tool.
TOOL:
Inner driver, 30 x 36 x 300 L [4] 07946-MB00000
[3]
[1]

[2]
Drive in a new upper outer race [1] using the special
tools. [2]
TOOLS:
Driver [2] 07749-0010000
Attachment, 42 x 47 mm [3] 07746-0010300
[3]

[1]

Drive in a new lower outer race [1] using the special
tools. [1] [3]

TOOLS:
Driver [2] 07749-0010000
Attachment, 52 x 55 mm [3] 07746-0010400

[2]

17-25
