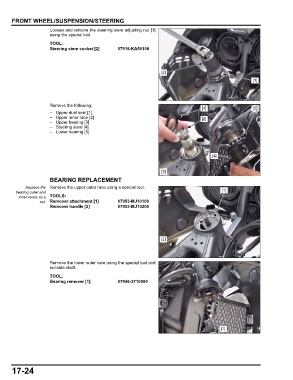

FRONT WHEEL/SUSPENSION/STEERING
Loosen and remove the steering stem adjusting nut [1]
using the special tool.

TOOL:
Steering stem socket [2] 07916-KA50100

[2]
[1]

Remove the following:
[1] [5]
– Upper dust seal [1]
– Upper inner race [2] [2]
– Upper bearing [3]
– Steering stem [4]
– Lower bearing [5]

[4]

[3]
BEARING REPLACEMENT
Replace the Remove the upper outer race using a special tool.
bearing outer and [1]
inner races as a TOOLS:
set. Remover attachment [1] 07953-MJ10100
Remover handle [2] 07953-MJ10200

[2]

Remove the lower outer race using the special tool and
suitable shaft.
TOOL:
Bearing remover [1] 07946-3710500

[1]

17-24
