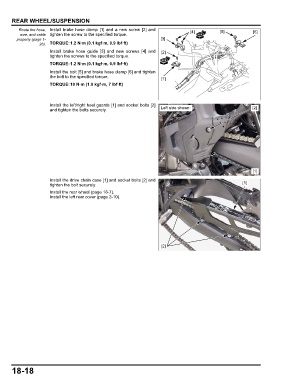

      REAR WHEEL/SUSPENSION
         Route the hose, Install brake hose clamp [1] and a new screw [2] and   [4]          [5]           [6]
         wire, and cable tighten the screw to the specified torque.
        properly (page 1-                                           [3]
                 26).  TORQUE:1.2 N·m (0.1 kgf·m, 0.9 lbf·ft)
                      Install brake hose guide [3] and new screws [4]  and  [2]
                      tighten the screws to the specified torque.
                      TORQUE:1.2 N·m (0.1 kgf·m, 0.9 lbf·ft)
                      Install the bolt [5] and brake hose clamp [6] and tighten
                      the bolt to the specified torque.
                                                                    [1]
                      TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)




                      Install the left/right heel guards [1] and socket bolts [2]
                      and tighten the bolts securely.               Left side shown:                       [2]














                                                                                                           [1]
                      Install the drive chain case [1] and socket bolts [2] and
                      tighten the bolt securely.                                                      [1]
                      Install the rear wheel (page 18-7).
                      Install the left rear cover (page 2-10).











                                                                    [2]





























      18-18
