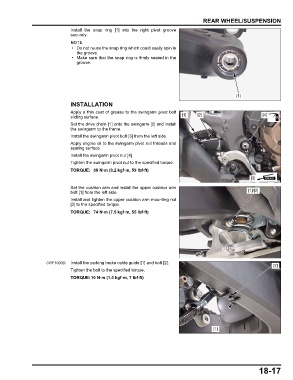

                                                                                      REAR WHEEL/SUSPENSION
                               Install the snap ring  [1]  into  the right pivot groove
                               securely.


                                • Do not reuse the snap ring which could easily spin in
                                 the groove.
                                • Make sure that the snap ring is firmly seated in the
                                 groove.






                                                                                                    [1]
                               INSTALLATION

                               Apply a thin coat of grease to the swingarm pivot bolt
                               sliding surface.                              [1]    [2]                        [4]
                               Set the drive chain [1] onto the swingarm [2] and install
                               the swingarm to the frame.
                               Install the swingarm pivot bolt [3] from the left side.
                               Apply engine oil to the swingarm pivot nut threads and
                               seating surface.
                               Install the swingarm pivot nut [4].
                               Tighten the swingarm pivot nut to the specified torque.
                               TORQUE:  80 N·m (8.2 kgf·m, 59 lbf·ft)
                                                                                                          [3]
                               Set the cushion arm and install the upper cushion arm
                               bolt [1] from the left side.                                              [1]/[2]
                               Install and tighten the upper cushion arm mounting nut
                               [2] to the specified torque.
                               TORQUE:  74 N·m (7.5 kgf·m, 55 lbf·ft)











                    CRF1000D: Install the parking brake cable guide [1] and bolt [2].
                                                                                                                   [2]
                               Tighten the bolt to the specified torque.
                               TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)











                                                                                          [1]








                                                                                                             18-17
