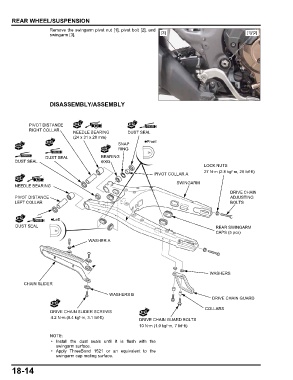

REAR WHEEL/SUSPENSION
Remove the swingarm pivot nut [1], pivot bolt [2], and
swingarm [3]. [3] [1]/[2]

DISASSEMBLY/ASSEMBLY

PIVOT DISTANCE
RIGHT COLLAR
NEEDLE BEARING DUST SEAL
(24 x 31 x 28 mm)
Front
SNAP
RING
DUST SEAL BEARING
DUST SEAL 6003
LOCK NUTS
27 N·m (2.8 kgf·m, 20 lbf·ft)
PIVOT COLLAR A
SWINGARM
NEEDLE BEARING
DRIVE CHAIN
PIVOT DISTANCE ADJUSTING
LEFT COLLAR BOLTS

Left
DUST SEAL REAR SWINGARM
CAPS (5 pcs)
WASHER A

WASHERS
CHAIN SLIDER

WASHERS B
DRIVE CHAIN GUARD

COLLARS
DRIVE CHAIN SLIDER SCREWS
4.2 N·m (0.4 kgf·m, 3.1 lbf·ft) DRIVE CHAIN GUARD BOLTS
10 N·m (1.0 kgf·m, 7 lbf·ft)

• Install the dust seals until it is flush with the
swingarm surface.
• Apply ThreeBond 1521 or an equivalent to the
swingarm cap mating surface.

18-14
