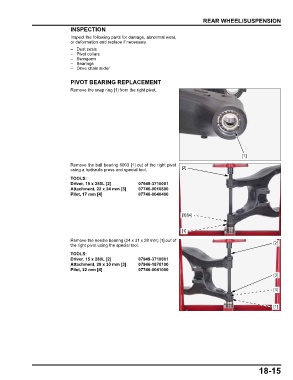

                                                                                      REAR WHEEL/SUSPENSION
                               INSPECTION
                               Inspect the following parts for damage, abnormal wear,
                               or deformation and replace if necessary.
                               – Dust seals
                               – Pivot collars
                               – Swingarm
                               – Bearings
                               – Drive chain slider


                               PIVOT BEARING REPLACEMENT
                               Remove the snap ring [1] from the right pivot.















                                                                                                      [1]
                               Remove the ball bearing 6003 [1] out of the right pivot
                               using a hydraulic press and special tool.     [2]
                               TOOLS:
                               Driver, 15 x 280L [2]       07949-3710001
                               Attachment, 22 x 24 mm [3]  07746-0010800
                               Pilot, 17 mm [4]            07746-0040400



                                                                             [3]/[4]



                                                                             [1]
                               Remove the needle bearing (24 x 31 x 28 mm) [1] out of
                               the right pivot using the special tool.                                             [2]

                               TOOLS:
                               Driver, 15 x 280L [2]       07949-3710001
                               Attachment, 28 x 30 mm [3]  07946-1870100
                               Pilot, 22 mm [4]            07746-0041000
                                                                                                                   [3]


                                                                                                                   [4]


                                                                                                                   [1]














                                                                                                             18-15
