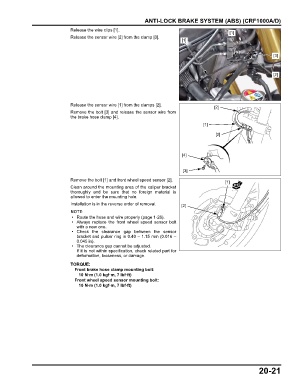

ANTI-LOCK BRAKE SYSTEM (ABS) (CRF1000A/D)
Release the wire clips [1].
[1]
Release the sensor wire [2] from the clamp [3].
[1]

[3]

[2]

Release the sensor wire [1] from the clamps [2].
[2]
Remove the bolt [3] and release the sensor wire from
the brake hose clamp [4].
[1]
[2]

[4]

[3]
Remove the bolt [1] and front wheel speed sensor [2].
[1]
Clean around the mounting area of the caliper bracket
thoroughly and be sure that no foreign material is
allowed to enter the mounting hole.
Installation is in the reverse order of removal. [2]

• Route the hose and wire properly (page 1-26).
• Always replace the front wheel speed sensor bolt
with a new one.
• Check the clearance gap between the sensor
bracket and pulser ring is 0.40 – 1.15 mm (0.016 –
0.045 in).
• The clearance gap cannot be adjusted.
If it is not within specification, check related part for
deformation, looseness, or damage.
TORQUE:
Front brake hose clamp mounting bolt:
10 N·m (1.0 kgf·m, 7 lbf·ft)
Front wheel speed sensor mounting bolt:
10 N·m (1.0 kgf·m, 7 lbf·ft)
