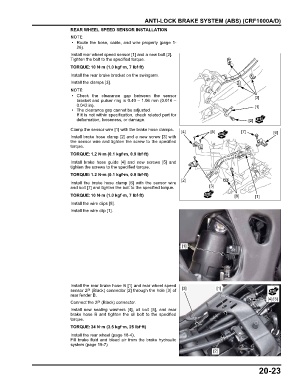

ANTI-LOCK BRAKE SYSTEM (ABS) (CRF1000A/D)
REAR WHEEL SPEED SENSOR INSTALLATION

• Route the hose, cable, and wire properly (page 1-
26).
Install rear wheel speed sensor [1] and a new bolt [2].
Tighten the bolt to the specified torque.
TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)
Install the rear brake bracket on the swingarm.
Install the clamps [3].

• Check the clearance gap between the sensor [3]
bracket and pulser ring is 0.40 – 1.06 mm (0.016 –
0.042 in). [1]
• The clearance gap cannot be adjusted.
If it is not within specification, check related part for
deformation, looseness, or damage. [2]

Clamp the sensor wire [1] with the brake hose clamps.
[4] [5] [7] [6]
Install brake hose clamp [2] and a new screw [3] with
the sensor wire and tighten the screw to the specified
torque.
TORQUE:1.2 N·m (0.1 kgf·m, 0.9 lbf·ft)
Install brake hose guide [4] and new screws [5] and
tighten the screws to the specified torque.
TORQUE:1.2 N·m (0.1 kgf·m, 0.9 lbf·ft)
[2]
Install the brake hose clamp [6] with the sensor wire
and bolt [7] and tighten the bolt to the specified torque. [3]
TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft) [8] [1]
Install the wire clips [8].
Install the wire clip [1].

[1]

Install the rear brake hose B [1] and rear wheel speed
sensor 2P (Black) connector [2] through the hole [3] of [3] [1]
rear fender B.
[4]/[5]
Connect the 2P (Black) connector.
Install new sealing washers [4], oil bolt [5], and rear
brake hose B and tighten the oil bolt to the specified
torque.
TORQUE:34 N·m (3.5 kgf·m, 25 lbf·ft)

Install the rear wheel (page 18-4).
Fill brake fluid and bleed air from the brake hydraulic
system (page 19-7)
[2]

20-23
