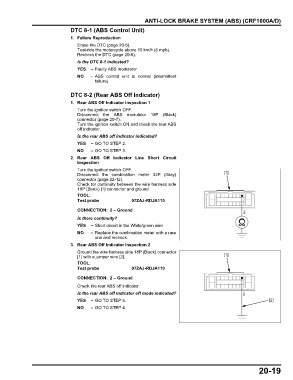

ANTI-LOCK BRAKE SYSTEM (ABS) (CRF1000A/D)
DTC 8-1 (ABS Control Unit)
1. Failure Reproduction
Erase the DTC (page 20-6).
Test-ride the motorcycle above 10 km/h (6 mph).
Recheck the DTC (page 20-6).
Is the DTC 8-1 indicated?
YES – Faulty ABS modulator
NO – ABS control unit is normal (intermittent
failure)

DTC 8-2 (Rear ABS Off Indicator)
1. Rear ABS Off Indicator Inspection 1
Turn the ignition switch OFF.
Disconnect the ABS modulator 18P (Black)
connector (page 20-7).
Turn the ignition switch ON and check the rear ABS
off indicator.
Is the rear ABS off indicator indicated?
YES – GO TO STEP 2.
NO – GO TO STEP 3.
2. Rear ABS Off Indicator Line Short Circuit
Inspection
Turn the ignition switch OFF.
Disconnect the combination meter 32P (Gray) [1]
connector (page 22-12).
Check tor continuity between the wire harness side
18P (Black) [1] connector and ground
TOOL:
Test probe 07ZAJ-RDJA110
CONNECTION: 2 – Ground 2
Is there continuity?
YES – Short circuit in the White/green wire
NO – Replace the combination meter with a new
one and recheck.
3. Rear ABS Off Indicator Inspection 2
Ground the wire harness side 18P (Black) connector
[1] with a jumper wire [2]. [1]
TOOL:
Test probe 07ZAJ-RDJA110

CONNECTION: 2 – Ground
Check the rear ABS off indicator.
Is the rear ABS off indicator off mode indicated? 2
YES – GO TO STEP 5. [2]
NO – GO TO STEP 4.

20-19
