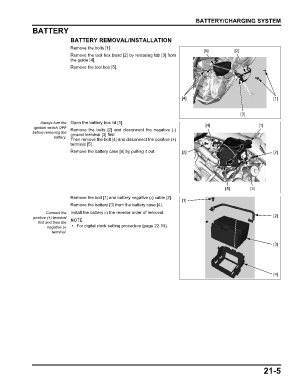

BATTERY/CHARGING SYSTEM
BATTERY

BATTERY REMOVAL/INSTALLATION
Remove the bolts [1].
[5] [2]
Remove the tool box band [2] by releasing tab [3] from
the guide [4].
Remove the tool box [5].

[4] [1]

[3]
Always turn the Open the battery box lid [1].
ignition switch OFF Remove the bolts [2] and disconnect the negative (-) [4] [1]
before removing the ground terminal [3] first.
battery.
Then remove the bolt [4] and disconnect the positive (+)
terminal [5].
Remove the battery case [6] by pulling it out. [2] [2]

[5] [3]

Remove the bolt [1] and battery negative (-) cable [2].
[1]
Remove the battery [3] from the battery case [4].
Connect the Install the battery in the reverse order of removal.
positive (+) terminal [2]
first and then the
negative (-) • For digital clock setting procedure (page 22-15).
terminal.

[3]

[4]

21-5
