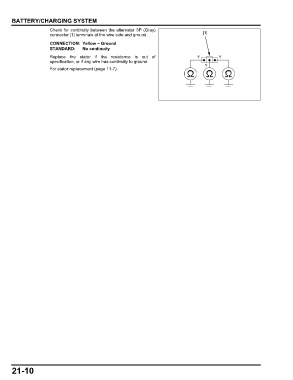

BATTERY/CHARGING SYSTEM
Check for continuity between the alternator 3P (Gray)
connector [1] terminals at the wire side and ground. [1]
CONNECTION: Yellow – Ground
STANDARD: No continuity
Replace the stator if the resistance is out of Y Y
specification, or if any wire has continuity to ground.
Y
For stator replacement (page 11-7).
21-10
