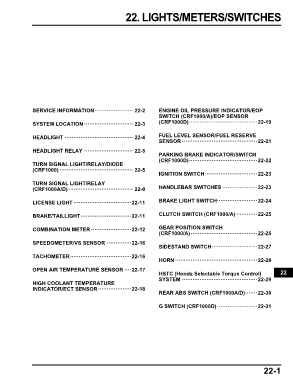

22. LIGHTS/METERS/SWITCHES

SERVICE INFORMATION······················ 22-2 ENGINE OIL PRESSURE INDICATOR/EOP
SWITCH (CRF1000/A)/EOP SENSOR
SYSTEM LOCATION ···························· 22-3 (CRF1000D)·······································22-19

HEADLIGHT ······································· 22-4 FUEL LEVEL SENSOR/FUEL RESERVE
SENSOR ···········································22-21
HEADLIGHT RELAY ···························· 22-5
PARKING BRAKE INDICATOR/SWITCH
(CRF1000D)·······································22-22
TURN SIGNAL LIGHT/RELAY/DIODE
(CRF1000) ·········································· 22-5
IGNITION SWITCH······························22-23
TURN SIGNAL LIGHT/RELAY
(CRF1000A/D)····································· 22-8 HANDLEBAR SWITCHES ····················22-23

LICENSE LIGHT ·································22-11 BRAKE LIGHT SWITCH·······················22-24

BRAKE/TAILLIGHT·····························22-11 CLUTCH SWITCH (CRF1000/A) ············22-25

COMBINATION METER ·······················22-12 GEAR POSITION SWITCH
(CRF1000/A)······································22-25
SPEEDOMETER/VS SENSOR ··············22-16
SIDESTAND SWITCH··························22-27
TACHOMETER···································22-16
HORN ···············································22-28

OPEN AIR TEMPERATURE SENSOR ····22-17
HSTC (Honda Selectable Torque Control) 22
SYSTEM ···········································22-29
HIGH COOLANT TEMPERATURE
INDICATOR/ECT SENSOR···················22-18
REAR ABS SWITCH (CRF1000A/D)·······22-30

G SWITCH (CRF1000D)·······················22-31

22-1
