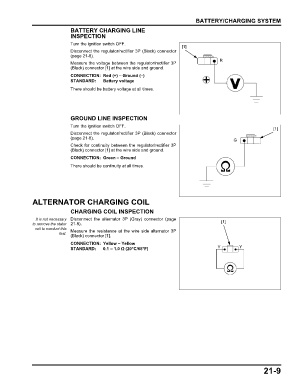

BATTERY/CHARGING SYSTEM
BATTERY CHARGING LINE
INSPECTION
Turn the ignition switch OFF.
[1]
Disconnect the regulator/rectifier 3P (Black) connector
(page 21-8).
R
Measure the voltage between the regulator/rectifier 3P
(Black) connector [1] at the wire side and ground.
CONNECTION: Red (+) – Ground (–)
STANDARD: Battery voltage
There should be battery voltage at all times.

GROUND LINE INSPECTION
Turn the ignition switch OFF.
[1]
Disconnect the regulator/rectifier 3P (Black) connector
(page 21-8). G
Check for continuity between the regulator/rectifier 3P
(Black) connector [1] at the wire side and ground.
CONNECTION: Green – Ground

There should be continuity at all times.

ALTERNATOR CHARGING COIL
CHARGING COIL INSPECTION
It is not necessary Disconnect the alternator 3P (Gray) connector (page
to remove the stator 21-8). [1]
coil to conduct this Measure the resistance at the wire side alternator 3P
test.
(Black) connector [1].
CONNECTION: Yellow – Yellow
STANDARD: 0.1 – 1.0 Ω (20°C/68°F) Y Y

21-9
