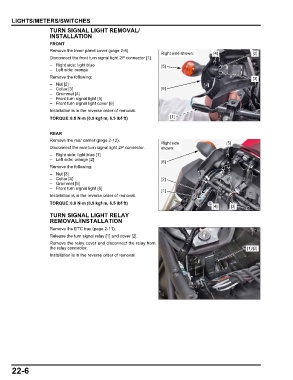

LIGHTS/METERS/SWITCHES
TURN SIGNAL LIGHT REMOVAL/
INSTALLATION
FRONT
Remove the inner panel cover (page 2-8).
Right side shown: [4] [2]
Disconnect the front turn signal light 2P connector [1].
– Right side: light blue [5]
– Left side: orange
Remove the following: [3]
–Nut [2]
–Collar [3] [6]
– Grommet [4]
– Front turn signal light [5]
– Front turn signal light cover [6]
Installation is in the reverse order of removal.
TORQUE:8.8 N·m (0.9 kgf·m, 6.5 lbf·ft) [1]

REAR
Remove the rear carrier (page 2-12).
Right side [5]
Disconnect the rear turn signal light 2P connector. shown:
– Right side: light blue [1]
– Left side: orange [2] [6]
Remove the following:
–Nut [3]
–Collar [4] [2]
– Grommet [5]
– Front turn signal light [6]
[1]
Installation is in the reverse order of removal.
TORQUE:8.8 N·m (0.9 kgf·m, 6.5 lbf·ft)
[4] [3]
TURN SIGNAL LIGHT RELAY
REMOVAL/INSTALLATION
Remove the ETC tray (page 2-11).
Release the turn signal relay [1] and cover [2].
Remove the relay cover and disconnect the relay from
the relay connector. [1]/[2]
Installation is in the reverse order of removal.

22-6
