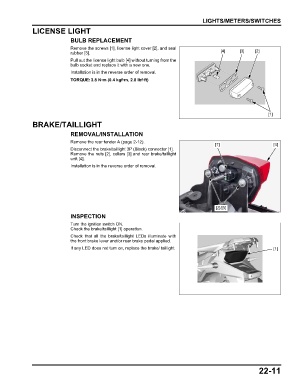

LIGHTS/METERS/SWITCHES
LICENSE LIGHT

BULB REPLACEMENT
Remove the screws [1], license light cover [2], and seal
rubber [3]. [4] [3] [2]
Pull out the license light bulb [4] without turning from the
bulb socket and replace it with a new one.
Installation is in the reverse order of removal.
TORQUE:3.8 N·m (0.4 kgf·m, 2.8 lbf·ft)

[1]
BRAKE/TAILLIGHT

REMOVAL/INSTALLATION
Remove the rear fender A (page 2-12).
[1] [4]
Disconnect the brake/taillight 3P (Black) connector [1].
Remove the nuts [2], collars [3] and rear brake/taillight
unit [4].
Installation is in the reverse order of removal.

[2]/[3]
INSPECTION
Turn the ignition switch ON.
Check the brake/taillight [1] operation.
Check that all the brake/taillight LEDs illuminate with
the front brake lever and/or rear brake pedal applied.
If any LED does not turn on, replace the brake/ taillight. [1]

22-11
