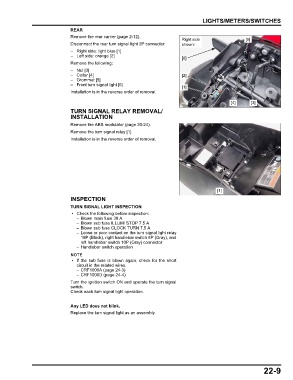

LIGHTS/METERS/SWITCHES
REAR
Remove the rear carrier (page 2-12).
Right side [5]
Disconnect the rear turn signal light 2P connector. shown:
– Right side: light blue [1]
– Left side: orange [2] [6]
Remove the following:
–Nut [3]
–Collar [4] [2]
– Grommet [5]
– Front turn signal light [6]
[1]
Installation is in the reverse order of removal.

[4] [3]
TURN SIGNAL RELAY REMOVAL/
INSTALLATION
Remove the ABS modulator (page 20-24).
Remove the turn signal relay [1].
Installation is in the reverse order of removal.

[1]
INSPECTION
TURN SIGNAL LIGHT INSPECTION
• Check the following before inspection:
– Blown main fuse 30 A
– Blown sub fuse ILLUMI STOP 7.5 A
– Blown sub fuse CLOCK TURN 7.5 A
– Loose or poor contact on the turn signal light relay
18P (Black), right handlebar switch 8P (Gray), and
left handlebar switch 10P (Gray) connector
– Handlebar switch operation

• If the sub fuse is blown again, check for the short
circuit in the related wires.
– CRF1000A (page 24-3)
– CRF1000D (page 24-4)
Turn the ignition switch ON and operate the turn signal
switch.
Check each turn signal light operation.

Any LED does not blink.
Replace the turn signal light as an assembly.
