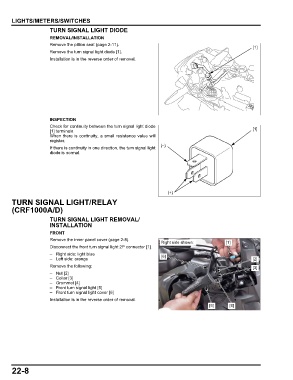

LIGHTS/METERS/SWITCHES
TURN SIGNAL LIGHT DIODE
REMOVAL/INSTALLATION
Remove the pillion seat (page 2-11).
[1]
Remove the turn signal light diode [1].
Installation is in the reverse order of removal.

INSPECTION
Check for continuity between the turn signal light diode
[1] terminals. [1]
When there is continuity, a small resistance value will
register.
(–)
If there is continuity in one direction, the turn signal light
diode is normal.

(+)
TURN SIGNAL LIGHT/RELAY
(CRF1000A/D)
TURN SIGNAL LIGHT REMOVAL/
INSTALLATION
FRONT
Remove the inner panel cover (page 2-8).
Right side shown: [1]
Disconnect the front turn signal light 2P connector [1].
– Right side: light blue [6]
– Left side: orange [2]
Remove the following: [3]
–Nut [2]
–Collar [3]
– Grommet [4]
– Front turn signal light [5]
– Front turn signal light cover [6]
Installation is in the reverse order of removal.
[5] [4]
