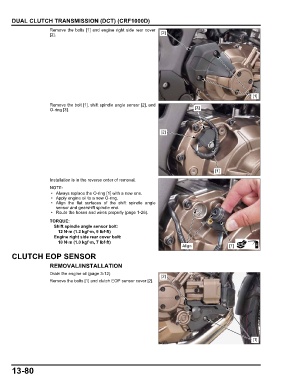

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Remove the bolts [1] and engine right side rear cover
[2]. [2]

[1]

Remove the bolt [1], shift spindle angle sensor [2], and
O-ring [3]. [3]

[2]

[1]
Installation is in the reverse order of removal.

• Always replace the O-ring [1] with a new one.
• Apply engine oil to a new O-ring.
• Align the flat surfaces of the shift spindle angle
sensor and gearshift spindle end.
• Route the hoses and wires properly (page 1-26).
TORQUE:
Shift spindle angle sensor bolt:
12 N·m (1.2 kgf·m, 9 lbf·ft)
Engine right side rear cover bolt:
10 N·m (1.0 kgf·m, 7 lbf·ft)
Align [1]
CLUTCH EOP SENSOR
REMOVAL/INSTALLATION

Drain the engine oil (page 3-12).
[2]
Remove the bolts [1] and clutch EOP sensor cover [2].

[1]

13-80
