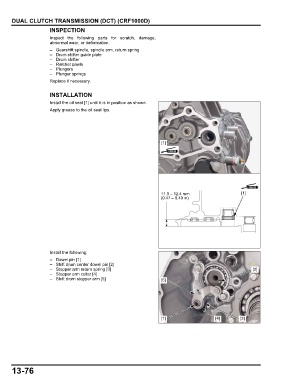

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
INSPECTION
Inspect the following parts for scratch, damage,
abnormal wear, or deformation.
– Gearshift spindle, spindle arm, return spring
– Drum shifter guide plate
– Drum shifter
– Ratchet pawls
– Plungers
– Plunger springs
Replace if necessary.

INSTALLATION
Install the oil seal [1] until it is in position as shown.
Apply grease to the oil seal lips.

[1]

11.9 – 12.4 mm [1]
(0.47 – 0.49 in)

Install the following:
– Dowel pin [1]
– Shift drum center dowel pin [2]
– Stopper arm return spring [3] [2]
– Stopper arm collar [4]
– Shift drum stopper arm [5] [5]

[1] [4] [3]

13-76
