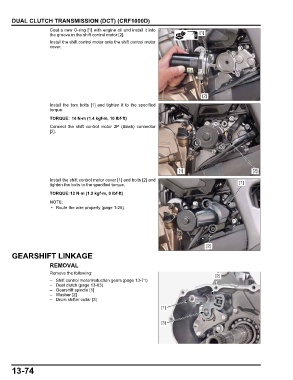

Page 344 - 2019 SHOP MANUAL CRF1000/A/D

du
dummyheadmmyhead

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Coat a new O-ring [1] with engine oil and install it into
the groove in the shift control motor [2]. [1]
Install the shift control motor onto the shift control motor
cover.

[2]

Install the torx bolts [1] and tighten it to the specified
torque.
TORQUE: 14 N·m (1.4 kgf·m, 10 lbf·ft)
Connect the shift control motor 2P (Black) connector
[2].

[1] [2]
Install the shift control motor cover [1] and bolts [2] and
tighten the bolts to the specified torque. [1]
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

• Route the wire properly (page 1-26)

[2]
GEARSHIFT LINKAGE
REMOVAL
Remove the following:
[2]
– Shift control motor/reduction gears (page 13-71)
– Dual clutch (page 13-63)
– Gearshift spindle [1]
–Washer [2]
– Drum shifter collar [3]

[1]

[3]

13-74
