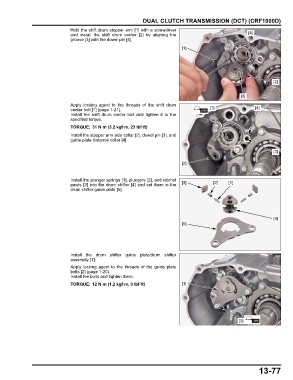

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Hold the shift drum stopper arm [1] with a screwdriver
and install the shift drum center [2] by aligning the [4]
groove [3] with the dowel pin [4].
[1]

[2]

[3]

Apply locking agent to the threads of the shift drum
center bolt [1] (page 1-21). [1] [4]
Install the shift drum center bolt and tighten it to the
specified torque.
TORQUE: 31 N·m (3.2 kgf·m, 23 lbf·ft)

Install the stopper arm side collar [2], dowel pin [3], and
guide plate distance collar [4].

[3]

[2]

Install the plunger springs [1], plungers [2], and ratchet
pawls [3] into the drum shifter [4] and set them in the [3] [2] [1]
drum shifter guide plate [5].

[4]
[5]

Install the drum shifter guide plate/drum shifter
assembly [1].
Apply locking agent to the threads of the guide plate
bolts [2] (page 1-20).
Install the bolts and tighten them.
TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft) [1]

[2]

13-77
