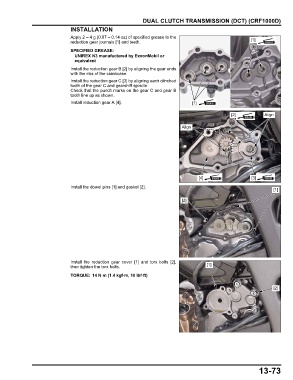

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
INSTALLATION
Apply 2 – 4 g (0.07 – 0.14 oz) of specified grease to the
reduction gear journals [1] and teeth. [1]
SPECIFIED GREASE:
UNIREX N3 manufactured by ExxonMobil or
equivalent
Install the reduction gear B [2] by aligning the gear ends
with the ribs of the crankcase.
Install the reduction gear C [3] by aligning each clinched
tooth of the gear C and gearshift spindle.
Check that the punch marks on the gear C and gear B
tooth line up as shown.
Install reduction gear A [4]. [1]

[2] Align

Align

[4] [3]
Install the dowel pins [1] and gasket [2].
[1]

[2]

Install the reduction gear cover [1] and torx bolts [2],
then tighten the torx bolts. [1]
TORQUE: 14 N·m (1.4 kgf·m, 10 lbf·ft)

[2]

13-73
