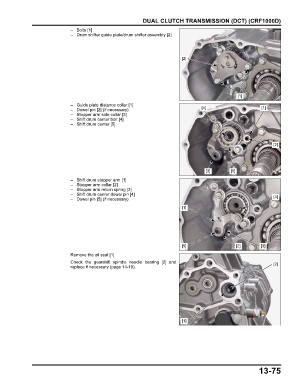

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
– Bolts [1]
– Drum shifter guide plate/drum shifter assembly [2]
[2]
[1]
– Guide plate distance collar [1]
– Dowel pin [2] (if necessary) [4] [1]
– Stopper arm side collar [3]
– Shift drum center bolt [4]
– Shift drum center [5]
[2]
[3] [5]
– Shift drum stopper arm [1]
– Stopper arm collar [2]
– Stopper arm return spring [3]
– Shift drum center dowel pin [4] [4]
– Dowel pin [5] (if necessary)
[1]
[5] [2] [3]
Remove the oil seal [1].
Check the gearshift spindle needle bearing [2] and [2]
replace if necessary (page 14-19).
[1]
13-75
