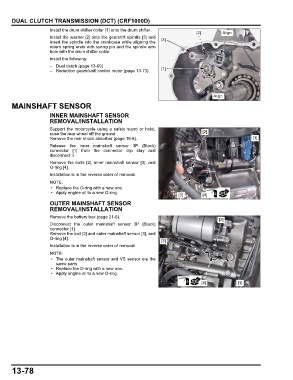

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Install the drum shifter collar [1] onto the drum shifter.
[2] Align
Install the washer [2] onto the gearshift spindle [3] and
insert the spindle into the crankcase while aligning the [3]
return spring ends with spring pin and the spindle arm
hole with the drum shifter collar.
Install the following:
– Dual clutch (page 13-69)
– Reduction gears/shift control motor (page 13-73) [1]

Align
MAINSHAFT SENSOR

INNER MAINSHAFT SENSOR
REMOVAL/INSTALLATION
Support the motorcycle using a safety stand or hoist,
raise the rear wheel off the ground. [2]
Remove the rear shock absorber (page 18-8). [1]
Release the inner mainshaft sensor 3P (Black)
connector [1] from the connector clip stay and
disconnect it.
Remove the bolts [2], inner mainshaft sensor [3], and
O-ring [4].
Installation is in the reverse order of removal.

• Replace the O-ring with a new one.
• Apply engine oil to a new O-ring. [3] [4]
OUTER MAINSHAFT SENSOR
REMOVAL/INSTALLATION
Remove the battery box (page 21-6).
[2]
Disconnect the outer mainshaft sensor 3P (Black)
connector [1].
Remove the bolt [2] and outer mainshaft sensor [3], and
O-ring [4].
[3]
Installation is in the reverse order of removal.

• The outer mainshaft sensor and VS sensor are the
same parts.
• Replace the O-ring with a new one.
• Apply engine oil to a new O-ring.
[4] [1]

13-78
