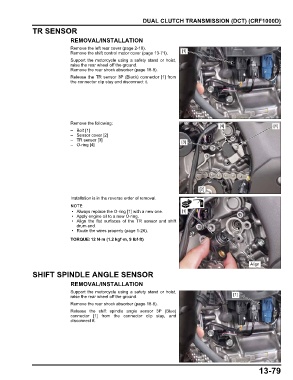

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
TR SENSOR

REMOVAL/INSTALLATION
Remove the left rear cover (page 2-10).
Remove the shift control motor cover (page 13-71). [1]
Support the motorcycle using a safety stand or hoist,
raise the rear wheel off the ground.
Remove the rear shock absorber (page 18-8).
Release the TR sensor 3P (Black) connector [1] from
the connector clip stay and disconnect it.

Remove the following:
[4] [1]
– Bolt [1]
– Sensor cover [2]
– TR sensor [3] [3]
– O-ring [4]

[2]
Installation is in the reverse order of removal.

• Always replace the O-ring [1] with a new one. [1]
• Apply engine oil to a new O-ring.
• Align the flat surfaces of the TR sensor and shift
drum end.
• Route the wires properly (page 1-26).
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

Align
SHIFT SPINDLE ANGLE SENSOR

REMOVAL/INSTALLATION
Support the motorcycle using a safety stand or hoist,
raise the rear wheel off the ground. [1]
Remove the rear shock absorber (page 18-8).
Release the shift spindle angle sensor 3P (Blue)
connector [1] from the connector clip stay, and
disconnect it.
