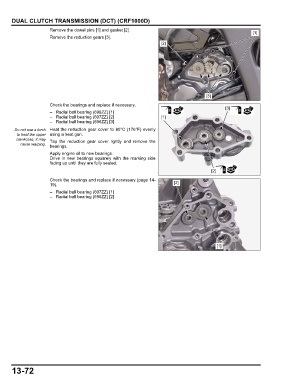

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Remove the dowel pins [1] and gasket [2].
[1]
Remove the reduction gears [3].
[2]

[3]

Check the bearings and replace if necessary.
[3]
– Radial ball bearing (699ZZ) [1]
– Radial ball bearing (607ZZ) [2] [1]
– Radial ball bearing (696ZZ) [3]
Do not use a torch Heat the reduction gear cover to 80°C (176°F) evenly
to heat the upper using a heat gun.
crankcase; it may Tap the reduction gear cover lightly and remove the
cause warping.
bearings.
Apply engine oil to new bearings.
Drive in new bearings squarely with the marking side
facing up until they are fully seated.
[2]
Check the bearings and replace if necessary (page 14-
19). [2]
– Radial ball bearing (607ZZ) [1]
– Radial ball bearing (696ZZ) [2]

[1]

13-72
