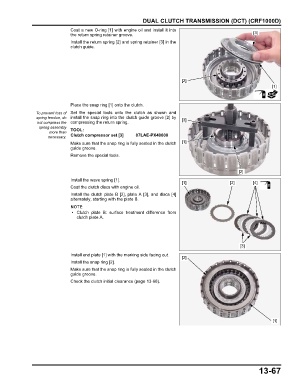

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Coat a new O-ring [1] with engine oil and install it into
the return spring retainer groove. [3]
Install the return spring [2] and spring retainer [3] in the
clutch guide.

[2]
[1]

Place the snap ring [1] onto the clutch.
To prevent loss of Set the special tools onto the clutch as shown and
spring tension, do install the snap ring into the clutch guide groove [2] by [3]
not compress the compressing the return spring.
spring assembly TOOL:
more than
necessary. Clutch compressor set [3] 07LAE-PX40000
Make sure that the snap ring is fully seated in the clutch [1]
guide groove.
Remove the special tools.

[2]
Install the wave spring [1].
[1] [2] [4]
Coat the clutch discs with engine oil.
Install the clutch plate B [2], plate A [3], and discs [4]
alternately, starting with the plate B.

• Clutch plate B: surface treatment difference from
clutch plate A.

[3]
Install end plate [1] with the marking side facing out.
[2]
Install the snap ring [2].
Make sure that the snap ring is fully seated in the clutch
guide groove.
Check the clutch initial clearance (page 13-68).

[1]

13-67
