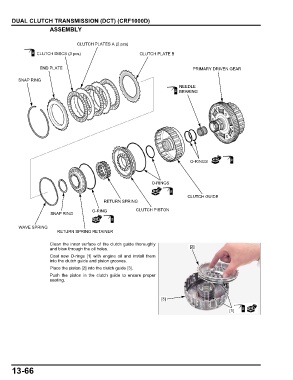

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
ASSEMBLY
CLUTCH PLATES A (2 pcs)
CLUTCH DISCS (3 pcs) CLUTCH PLATE B
END PLATE PRIMARY DRIVEN GEAR
SNAP RING
NEEDLE
BEARING
O-RINGS
O-RINGS
CLUTCH GUIDE
RETURN SPRING
O-RING CLUTCH PISTON
SNAP RING
WAVE SPRING
RETURN SPRING RETAINER
Clean the inner surface of the clutch guide thoroughly
and blow through the oil holes. [2]
Coat new O-rings [1] with engine oil and install them
into the clutch guide and piston grooves.
Place the piston [2] into the clutch guide [3].
Push the piston in the clutch guide to ensure proper
seating.
[3]
[1]
13-66
