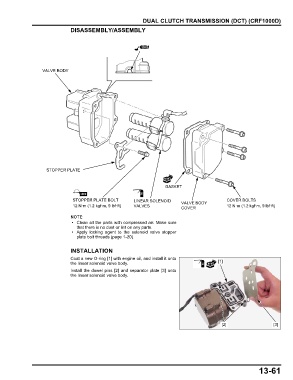

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
DISASSEMBLY/ASSEMBLY

VALVE BODY

STOPPER PLATE

GASKET

STOPPER PLATE BOLT LINEAR SOLENOID VALVE BODY COVER BOLTS
12 N·m (1.2 kgf·m, 9 lbf·ft) VALVES 12 N·m (1.2 kgf·m, 9 lbf·ft)
COVER

• Clean all the parts with compressed air. Make sure
that there is no dust or lint on any parts.
• Apply locking agent to the solenoid valve stopper
plate bolt threads (page 1-20).

INSTALLATION

Coat a new O-ring [1] with engine oil, and install it onto
the linear solenoid valve body. [1]
Install the dowel pins [2] and separator plate [3] onto
the linear solenoid valve body.

[2] [3]

13-61
