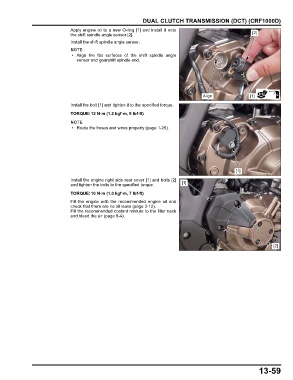

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Apply engine oil to a new O-ring [1] and install it onto
the shift spindle angle sensor [2]. [2]
Install the shift spindle angle sensor.

• Align the flat surfaces of the shift spindle angle
sensor and gearshift spindle end.

Align [1]

Install the bolt [1] and tighten it to the specified torque.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

• Route the hoses and wires properly (page 1-26).

[1]
Install the engine right side rear cover [1] and bolts [2]
and tighten the bolts to the specified torque. [1]
TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)
Fill the engine with the recommended engine oil and
check that there are no oil leaks (page 3-12).
Fill the recommended coolant mixture to the filler neck
and bleed the air (page 8-4).

[2]

13-59
