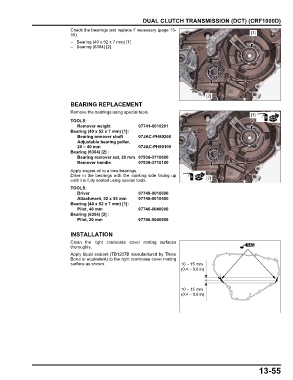

Page 325 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Check the bearings and replace if necessary (page 13-
55). [1]
– Bearing (40 x 52 x 7 mm) [1]
– Bearing (6304) [2]

[2]
BEARING REPLACEMENT

Remove the bearings using special tools.
[1]
TOOLS:
Remover weight 07741-0010201
Bearing (40 x 52 x 7 mm) [1]:
Bearing remover shaft 07JAC-PH80200
Adjustable bearing puller,
20 – 40 mm 07JAC-PH80100
Bearing (6304) [2] :
Bearing remover set, 20 mm 07936-3710600
Remover handle 07936-3710100
Apply engine oil to a new bearings.
Drive in the bearings with the marking side facing up [2]
until it is fully seated using special tools.
TOOLS:
Driver 07749-0010000
Attachment, 52 x 55 mm 07746-0010400
Bearing (40 x 52 x 7 mm) [1]:
Pilot, 40 mm 07746-0040900
Bearing (6304) [2] :
Pilot, 20 mm 07746-0040500

INSTALLATION
Clean the right crankcase cover mating surfaces
thoroughly.
Apply liquid sealant (TB1207B manufactured by Three
Bond or equivalent) to the right crankcase cover mating
surface as shown. 10 – 15 mm
(0.4 – 0.6 in)

10 – 15 mm
(0.4 – 0.6 in)

13-55
