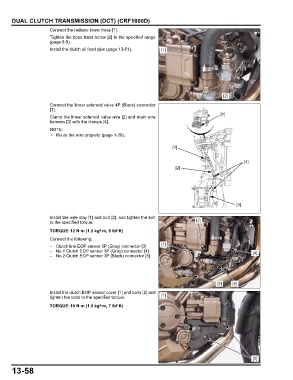

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Connect the radiator lower hose [1].
Tighten the hose band screw [2] to the specified range
(page 8-8).
Install the clutch oil feed pipe (page 13-51). [1]

[2]

Connect the linear solenoid valve 4P (Black) connector
[1].
[1]
Clamp the linear solenoid valve wire [2] and main wire
harness [3] with the clamps [4].

• Route the wire properly (page 1-26).

[4]

[4]
[2]

[3]

Install the wire stay [1] and bolt [2], and tighten the bolt
to the specified torque. [2]

TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)
Connect the following:
– Clutch line EOP sensor 3P (Gray) connector [3] [1]
– No.1 Clutch EOP sensor 3P (Gray) connector [4] [4]
– No.2 Clutch EOP sensor 3P (Black) connector [5]

[3] [5]

Install the clutch EOP sensor cover [1] and bolts [2] and
tighten the bolts to the specified torque. [1]
TORQUE:10 N·m (1.0 kgf·m, 7 lbf·ft)

[2]
13-58
