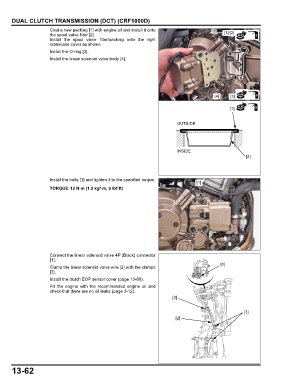

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Coat a new packing [1] with engine oil and install it onto
the spool valve filter [2]. [1]/[2]
Install the spool valve filter/packing onto the right
crankcase cover as shown.
Install the O-ring [3].
Install the linear solenoid valve body [4].

[4] [3]

[1]

OUTSIDE

INSIDE
[2]

Install the bolts [1] and tighten it to the specified torque.
[1]
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

Connect the linear solenoid valve 4P (Black) connector
[1].
[1]
Clamp the linear solenoid valve wire [2] with the clamps
[3].
Install the clutch EOP sensor cover (page 13-80).
Fill the engine with the recommended engine oil and
check that there are no oil leaks (page 3-12).
[3]

[3]
[2]
