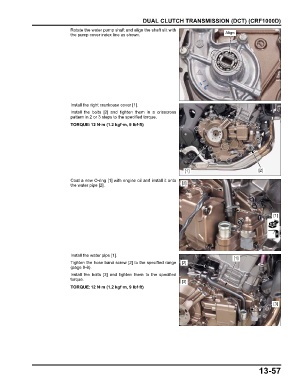

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Rotate the water pump shaft and align the shaft slit with
the pump cover index line as shown. Align

Install the right crankcase cover [1].
Install the bolts [2] and tighten them in a crisscross
pattern in 2 or 3 steps to the specified torque.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

[1] [2]
Coat a new O-ring [1] with engine oil and install it onto
the water pipe [2]. [2]

[1]

Install the water pipe [1].
[1]
Tighten the hose band screw [2] to the specified range [2]
(page 8-8).
Install the bolts [3] and tighten them to the specified
torque.
[3]
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

[3]
