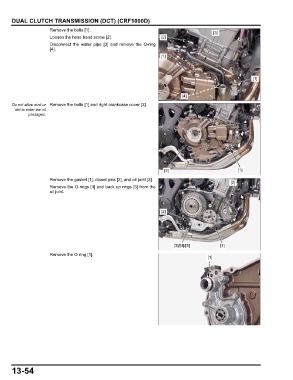

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Remove the bolts [1].
[3]
Loosen the hose band screw [2]. [2]
Disconnect the water pipe [3] and remove the O-ring
[4].
[1]

[1]

[4]

Do not allow dust or Remove the bolts [1] and right crankcase cover [2].
dirt to enter the oil
passages.

[2] [1]
Remove the gasket [1], dowel pins [2], and oil joint [3].
[2]
Remove the O-rings [4] and back up rings [5] from the
oil joint.

[2]

[3]/[4]/[5] [1]

Remove the O-ring [1].
[1]

13-54
