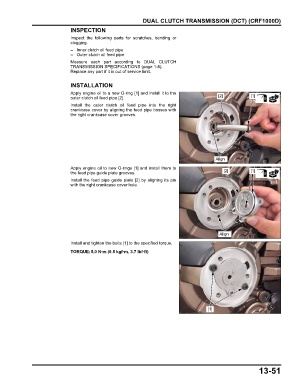

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
INSPECTION
Inspect the following parts for scratches, bending or
clogging.
– Inner clutch oil feed pipe
– Outer clutch oil feed pipe
Measure each part according to DUAL CLUTCH
TRANSMISSION SPECIFICATIONS (page 1-8).
Replace any part if it is out of service limit.

INSTALLATION

Apply engine oil to a new O-ring [1] and install it to the
outer clutch oil feed pipe [2]. [2] [1]
Install the outer clutch oil feed pipe into the right
crankcase cover by aligning the feed pipe bosses with
the right crankcase cover grooves.

Align
Apply engine oil to new O-rings [1] and install them to
the feed pipe guide plate grooves. [2] [1]
Install the feed pipe guide plate [2] by aligning its pin
with the right crankcase cover hole.

Align

Install and tighten the bolts [1] to the specified torque.
TORQUE:5.0 N·m (0.5 kgf·m, 3.7 lbf·ft)

[1]

13-51
