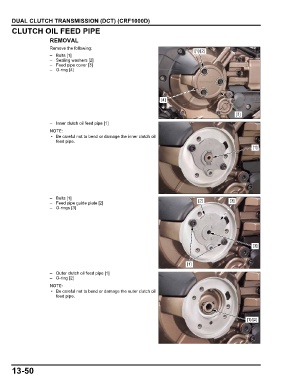

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
CLUTCH OIL FEED PIPE
REMOVAL
Remove the following:
[1]/[2]
– Bolts [1]
– Sealing washers [2]
– Feed pipe cover [3]
– O-ring [4]
[4]
[3]
– Inner clutch oil feed pipe [1]
• Be careful not to bend or damage the inner clutch oil
feed pipe.
[1]
– Bolts [1]
– Feed pipe guide plate [2] [2] [3]
– O-rings [3]
[3]
[1]
– Outer clutch oil feed pipe [1]
– O-ring [2]
• Be careful not to bend or damage the outer clutch oil
feed pipe.
[1]/[2]
13-50
