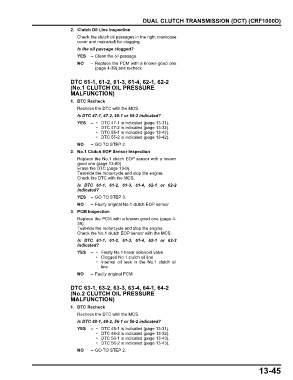

Page 315 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
2. Clutch Oil Line Inspection
Check the clutch oil passages in the right crankcase
cover and mainshaft for clogging.
Is the oil passage clogged?
YES – Clean the oil passage.
NO – Replace the PCM with a known good one
(page 4-39) and recheck.

DTC 61-1, 61-2, 61-3, 61-4, 62-1, 62-2
(No.1 CLUTCH OIL PRESSURE
MALFUNCTION)
1. DTC Recheck
Recheck the DTC with the MCS.
Is DTC 47-1, 47-2, 55-1 or 55-2 indicated?
YES – • DTC 47-1 is indicated (page 13-31).
• DTC 47-2 is indicated (page 13-32).
• DTC 55-1 is indicated (page 13-42).
• DTC 55-2 is indicated (page 13-42).
NO – GO TO STEP 2.
2. No.1 Clutch EOP Sensor Inspection
Replace the No.1 clutch EOP sensor with a known
good one (page 13-80).
Erase the DTC (page 13-9).
Test-ride the motorcycle and stop the engine.
Check the DTC with the MCS.
Is DTC 61-1, 61-2, 61-3, 61-4, 62-1 or 62-2
indicated?
YES – GO TO STEP 3.
NO – Faulty original No.1 clutch EOP sensor
3. PCM Inspection
Replace the PCM with a known good one (page 4-
39).
Test-ride the motorcycle and stop the engine.
Check the No.1 clutch EOP sensor with the MCS.
Is DTC 61-1, 61-2, 61-3, 61-4, 62-1 or 62-2
indicated?
YES – • Faulty No.1 linear solenoid valve
• Clogged No.1 clutch oil line
• Internal oil leak in the No.1 clutch oil
line
NO – Faulty original PCM

DTC 63-1, 63-2, 63-3, 63-4, 64-1, 64-2
(No.2 CLUTCH OIL PRESSURE
MALFUNCTION)
1. DTC Recheck
Recheck the DTC with the MCS.
Is DTC 48-1, 48-2, 56-1 or 56-2 indicated?
YES – • DTC 48-1 is indicated (page 13-31).
• DTC 48-2 is indicated (page 13-32).
• DTC 56-1 is indicated (page 13-43).
• DTC 56-2 is indicated (page 13-43).
NO – GO TO STEP 2.

13-45
