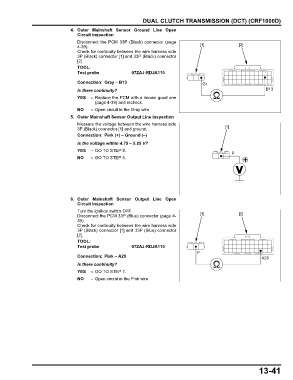

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
4. Outer Mainshaft Sensor Ground Line Open
Circuit Inspection
Disconnect the PCM 33P (Black) connector (page
4-39). [1] [2]
Check for continuity between the wire harness side
3P (Black) connector [1] and 33P (Black) connector
[2]
TOOL:
Test probe 07ZAJ-RDJA110

Connection: Gray – B13 Gr
Is there continuity? B13
YES – Replace the PCM with a known good one
(page 4-39) and recheck.
NO – Open circuit in the Gray wire
5. Outer Mainshaft Sensor Output Line Inspection
Measure the voltage between the wire harness side
3P (Black) connector [1] and ground. [1]
Connection: Pink (+) – Ground (–)
Is the voltage within 4.75 – 5.25 V?
YES – GO TO STEP 8.
P
NO – GO TO STEP 6.

6. Outer Mainshaft Sensor Output Line Open
Circuit Inspection
Turn the ignition switch OFF.
Disconnect the PCM 33P (Blue) connector (page 4- [1] [2]
39).
Check for continuity between the wire harness side
3P (Black) connector [1] and 33P (Blue) connector
[2].
TOOL:
Test probe 07ZAJ-RDJA110
P
Connection: Pink – A25 A25
Is there continuity?
YES – GO TO STEP 7.
NO – Open circuit in the Pink wire

13-41
