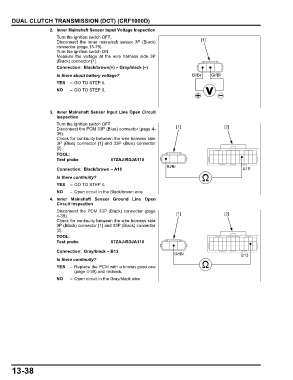

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
2. Inner Mainshaft Sensor Input Voltage Inspection
Turn the ignition switch OFF.
Disconnect the inner mainshaft sensor 3P (Black) [1]
connector (page 13-78).
Turn the ignition switch ON.
Measure the voltage at the wire harness side 3P
(Black) connector [1].
Connection: Black/brown(+) – Gray/black (–)
Is there about battery voltage? Bl/Br Gr/Bl
YES – GO TO STEP 5.
NO – GO TO STEP 3.

3. Inner Mainshaft Sensor Input Line Open Circuit
Inspection
Turn the ignition switch OFF.
Disconnect the PCM 33P (Blue) connector (page 4- [1] [2]
39).
Check for continuity between the wire harness side
3P (Blue) connector [1] and 33P (Blue) connector
[2].
TOOL:
Test probe 07ZAJ-RDJA110
Bl/Br
Connection: Black/brown – A15 A15
Is there continuity?
YES – GO TO STEP 4.
NO – Open circuit in the Black/brown wire
4. Inner Mainshaft Sensor Ground Line Open
Circuit Inspection
Disconnect the PCM 33P (Black) connector (page
4-39). [1] [2]
Check for continuity between the wire harness side
3P (Black) connector [1] and 33P (Black) connector
[2].
TOOL:
Test probe 07ZAJ-RDJA110

Connection: Gray/black – B13
Gr/Bl B13
Is there continuity?
YES – Replace the PCM with a known good one
(page 4-39) and recheck.
NO – Open circuit in the Gray/black wire

13-38
