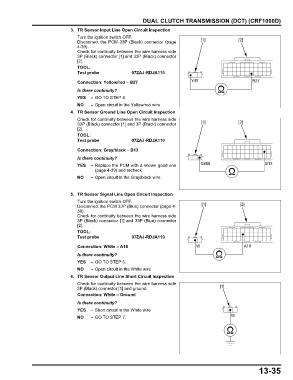

Page 305 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
3. TR Sensor Input Line Open Circuit Inspection
Turn the ignition switch OFF.
Disconnect the PCM 33P (Black) connector (page [1] [2]
4-39).
Check for continuity between the wire harness side
3P (Black) connector [1] and 33P (Black) connector
[2].
TOOL:
Test probe 07ZAJ-RDJA110

Connection: Yellow/red – B27 Y/R B27
Is there continuity?
YES – GO TO STEP 4.
NO – Open circuit in the Yellow/red wire
4. TR Sensor Ground Line Open Circuit Inspection
Check for continuity between the wire harness side
33P (Black) connector [1] and 3P (Black) connector [1] [2]
[2].
TOOL:
Test probe 07ZAJ-RDJA110
Connection: Gray/black – B13

Is there continuity?
YES – Replace the PCM with a known good one Gr/Bl B13
(page 4-39) and recheck.
NO – Open circuit in the Gray/black wire

5. TR Sensor Signal Line Open Circuit Inspection
Turn the ignition switch OFF.
Disconnect the PCM 33P (Blue) connector (page 4- [1] [2]
39).
Check for continuity between the wire harness side
3P (Black) connector [1] and 33P (Blue) connector
[2].
TOOL:
Test probe 07ZAJ-RDJA110

Connection: White – A18 W A18
Is there continuity?
YES – GO TO STEP 6.
NO – Open circuit in the White wire
6. TR Sensor Output Line Short Circuit Inspection
Check for continuity between the wire harness side
3P (Black) connector [1] and ground. [1]
Connection: White – Ground
Is there continuity?
YES – Short circuit in the White wire
NO – GO TO STEP 7. W

13-35
