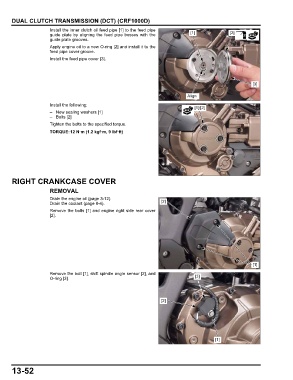

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Install the inner clutch oil feed pipe [1] to the feed pipe
guide plate by aligning the feed pipe bosses with the [1] [2]
guide plate grooves.
Apply engine oil to a new O-ring [2] and install it to the
feed pipe cover groove.
Install the feed pipe cover [3].

[3]

Align

Install the following:
[1]/[2]
– New sealing washers [1]
– Bolts [2]
Tighten the bolts to the specified torque.
TORQUE:12 N·m (1.2 kgf·m, 9 lbf·ft)

RIGHT CRANKCASE COVER

REMOVAL
Drain the engine oil (page 3-12).
Drain the coolant (page 8-4). [2]
Remove the bolts [1] and engine right side rear cover
[2].

[1]

Remove the bolt [1], shift spindle angle sensor [2], and
O-ring [3]. [3]

[2]

[1]

13-52
