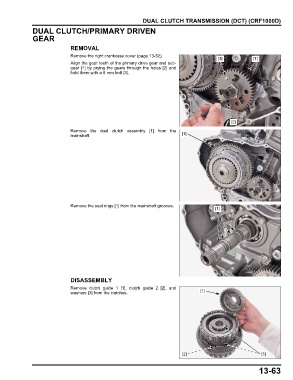

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
DUAL CLUTCH/PRIMARY DRIVEN
GEAR
REMOVAL
Remove the right crankcase cover (page 13-52).
[3] [1]
Align the gear teeth of the primary drive gear and sub-
gear [1] by prying the gears through the holes [2] and
hold them with a 6 mm bolt [3].
[2]
Remove the dual clutch assembly [1] from the
mainshaft. [1]
Remove the seal rings [1] from the mainshaft grooves.
[1]
DISASSEMBLY
Remove clutch guide 1 [1], clutch guide 2 [2], and
washers [3] from the clutches. [1]
[2] [3]
