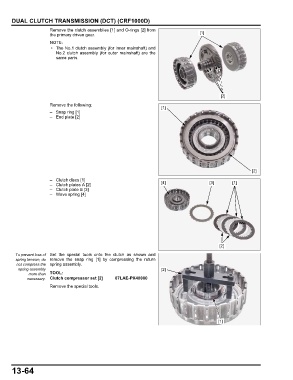

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
Remove the clutch assemblies [1] and O-rings [2] from
the primary driven gear. [1]

• The No.1 clutch assembly (for inner mainshaft) and
No.2 clutch assembly (for outer mainshaft) are the
same parts.

[2]

Remove the following:
[1]
– Snap ring [1]
– End plate [2]

[2]
– Clutch discs [1]
– Clutch plates A [2] [4] [3] [1]
– Clutch plate B [3]
– Wave spring [4]

[2]
To prevent loss of Set the special tools onto the clutch as shown and
spring tension, do remove the snap ring [1] by compressing the return
not compress the spring assembly.
spring assembly [2]
more than TOOL:
necessary. Clutch compressor set [2] 07LAE-PX40000
Remove the special tools.

[1]

13-64
