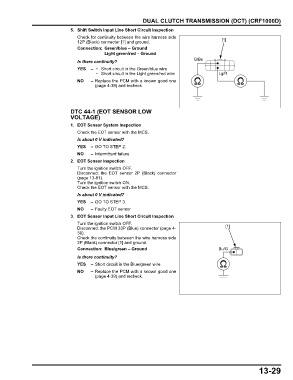

Page 299 - 2019 SHOP MANUAL CRF1000/A/D

dummyheadmmyhead
du

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
5. Shift Switch Input Line Short Circuit Inspection
Check for continuity between the wire harness side
12P (Black) connector [1] and ground. [1]
Connection: Green/blue – Ground
Light green/red – Ground
G/Bu
Is there continuity?
YES – • Short circuit in the Green/blue wire
• Short circuit in the Light green/red wire Lg/R
NO – Replace the PCM with a known good one
(page 4-39) and recheck.

DTC 44-1 (EOT SENSOR LOW
VOLTAGE)
1. EOT Sensor System Inspection
Check the EOT sensor with the MCS.
Is about 0 V indicated?
YES – GO TO STEP 2.
NO – Intermittent failure
2. EOT Sensor Inspection
Turn the ignition switch OFF.
Disconnect the EOT sensor 2P (Black) connector
(page 13-81).
Turn the ignition switch ON.
Check the EOT sensor with the MCS.
Is about 0 V indicated?
YES – GO TO STEP 3.
NO – Faulty EOT sensor
3. EOT Sensor Input Line Short Circuit Inspection
Turn the ignition switch OFF.
Disconnect the PCM 33P (Blue) connector (page 4- [1]
39).
Check the continuity between the wire harness side
2P (Black) connector [1] and ground.
Connection: Blue/green – Ground Bu/G
Is there continuity?
YES – Short circuit in the Blue/green wire
NO – Replace the PCM with a known good one
(page 4-39) and recheck.

13-29
