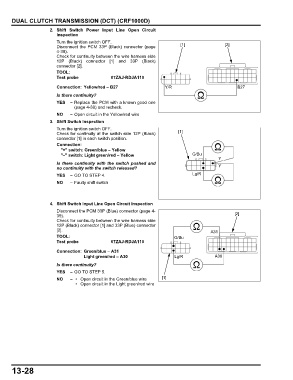

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
2. Shift Switch Power Input Line Open Circuit
Inspection
Turn the ignition switch OFF.
Disconnect the PCM 33P (Black) connector (page [1] [2]
4-39).
Check for continuity between the wire harness side
12P (Black) connector [1] and 33P (Black)
connector [2].
TOOL:
Test probe 07ZAJ-RDJA110
Connection: Yellow/red – B27 Y/R B27
Is there continuity?
YES – Replace the PCM with a known good one
(page 4-39) and recheck.
NO – Open circuit in the Yellow/red wire
3. Shift Switch Inspection
Turn the ignition switch OFF.
Check for continuity at the switch side 12P (Black) [1]
connector [1] in each switch position.
Connection:
"+" switch: Green/blue – Yellow
"–" switch: Light green/red – Yellow G/Bu
Y
Is there continuity with the switch pushed and
no continuity with the switch released? Y
YES – GO TO STEP 4. Lg/R
NO – Faulty shift switch

4. Shift Switch Input Line Open Circuit Inspection
Disconnect the PCM 33P (Blue) connector (page 4-
39). [2]
Check for continuity between the wire harness side
12P (Black) connector [1] and 33P (Blue) connector
[2]. A31
TOOL: G/Bu
Test probe 07ZAJ-RDJA110

Connection: Green/blue – A31
Light green/red – A30 Lg/R A30
Is there continuity?
YES – GO TO STEP 5.
NO – • Open circuit in the Green/blue wire [1]
• Open circuit in the Light green/red wire

13-28
