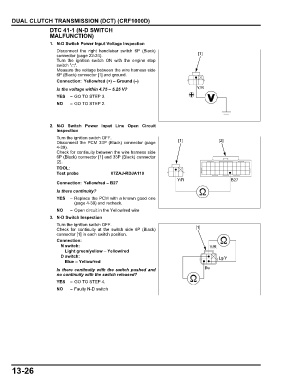

      DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
                      DTC 41-1 (N-D SWITCH
                      MALFUNCTION)

                      1. N-D Switch Power Input Voltage Inspection
                         Disconnect the right  handlebar  switch 6P (Black)
                         connector (page 22-24).                                    [1]
                         Turn the ignition switch  ON with the  engine stop
                         switch " ".
                         Measure the voltage between the wire harness side
                         6P (Black) connector [1] and ground.
                         Connection: Yellow/red (+) – Ground (–)

                         Is the voltage within 4.75 – 5.25 V?                      Y/R
                         YES – GO TO STEP 3.
                         NO   – GO TO STEP 2.




                      2. N-D Switch Power Input Line Open Circuit
                         Inspection
                         Turn the ignition switch OFF.
                         Disconnect the PCM 33P (Black) connector (page     [1]              [2]
                         4-39).
                         Check for continuity between the wire harness side
                         6P (Black) connector [1] and 33P (Black) connector
                         [2].
                         TOOL:
                         Test probe            07ZAJ-RDJA110
                                                                           Y/R                    B27
                         Connection: Yellow/red – B27
                         Is there continuity?
                         YES  – Replace the PCM with a known good one
                                (page 4-39) and recheck.
                         NO   – Open circuit in the Yellow/red wire
                      3. N-D Switch Inspection
                         Turn the ignition switch OFF.
                         Check for continuity at the switch side 6P  (Black)       [1]
                         connector [1] in each switch position.
                         Connection:
                          N switch:                                                      Y/R
                            Light green/yellow – Yellow/red
                          D switch:                                                         Lg/Y
                            Blue – Yellow/red
                         Is there continuity with the switch pushed and                Bu
                         no continuity with the switch released?
                         YES – GO TO STEP 4.
                         NO   – Faulty N-D switch


















      13-26
