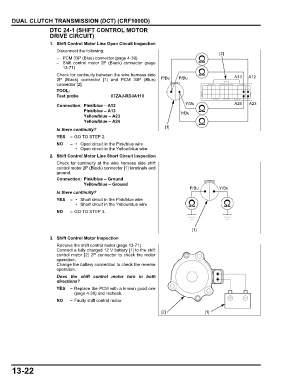

DUAL CLUTCH TRANSMISSION (DCT) (CRF1000D)
DTC 24-1 (SHIFT CONTROL MOTOR
DRIVE CIRCUIT)

1. Shift Control Motor Line Open Circuit Inspection
Disconnect the following:
[2]
– PCM 33P (Blue) connector (page 4-39)
– Shift control motor 2P (Black) connector (page
13-71)
Check for continuity between the wire harness side A13 A12
2P (Black) connector [1] and PCM 33P (Blue) P/Bu P/Bu
connector [2].
TOOL:
Test probe 07ZAJ-RDJA110

Connection: Pink/blue – A12 Y/Bu A24 A23
Pink/blue – A13 Y/Bu
Yellow/blue – A23
Yellow/blue – A24
[1]
Is there continuity?
YES – GO TO STEP 2.
NO – • Open circuit in the Pink/blue wire
• Open circuit in the Yellow/blue wire
2. Shift Control Motor Line Short Circuit Inspection
Check for continuity at the wire harness side shift
control motor 2P (Black) connector [1] terminals and
ground.
Connection: Pink/blue – Ground
Yellow/blue – Ground
P/Bu Y/Bu
Is there continuity?
YES – • Short circuit in the Pink/blue wire
• Short circuit in the Yellow/blue wire
NO – GO TO STEP 3.

[1]
3. Shift Control Motor Inspection
Remove the shift control motor (page 13-71).
Connect a fully charged 12 V battery [1] to the shift
control motor [2] 2P connector to check the motor
operation.
Change the battery connection to check the reverse
operation.
Does the shift control motor turn in both
directions?
YES – Replace the PCM with a known good one
(page 4-39) and recheck.
NO – Faulty shift control motor

[2] [1]
